Large-type(B-L)
For working with microscope,chemistry and the field of the material research
...etc

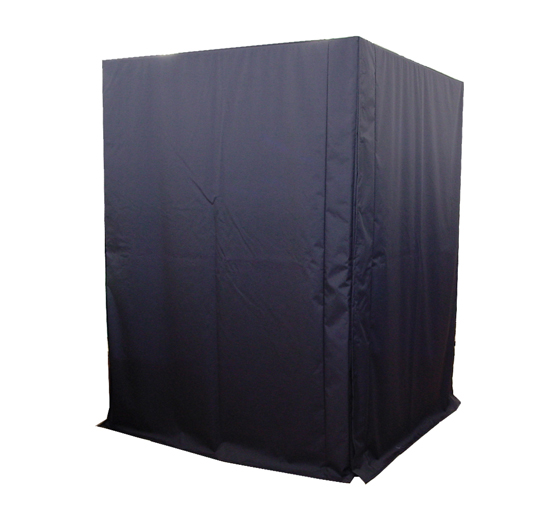

Hook-and-loop fastener type (B-L)

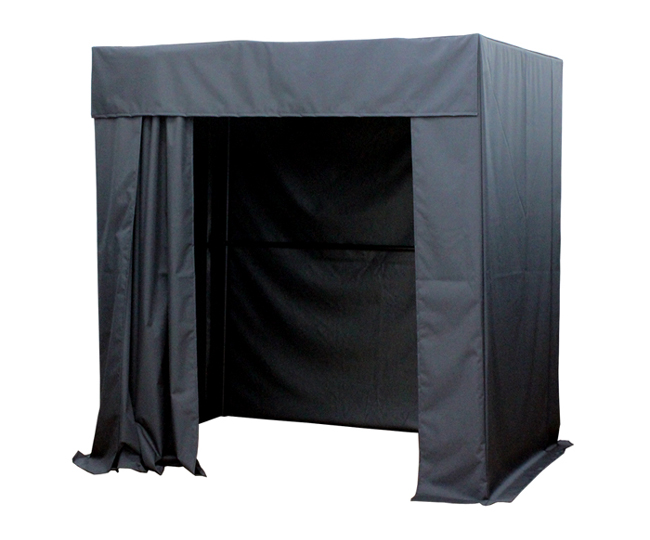

Curtain type (B-L-CU)

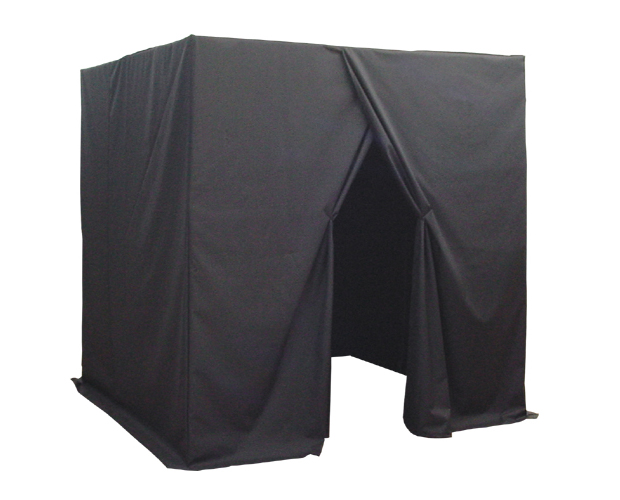

Cross type (B-L-X)
Specification
| Size | B-L1(1600 x 1600 x 2000) ~ B-L8(5200 x 1600 x 2000) *We can provide a special size on request. (Width:~5meter, Depth&Height:~2meter) |
|---|---|
| Type | Cross type / Hook-and-loop fastener type / Curtain type |
| Frame | Diameter 30mm, plastic coating iron pipe |
| Blackout curtain |
SCIENTEX's standard type >>More detail |
| Primary component |
Frame, Blackout curtain, Hex wrench |
| About package (e.g. B-L1-CU) |
Package size 1: 2000×150×150mm Package size 2: 660×450×160mm Total weight: About 20kg Carton：2 |
Model
| Type | Size(mm) | ||||
|---|---|---|---|---|---|
| Standard type | Curtain type | Cross type | Width | Depth | Height |
| B-L1 | B-L1-CU | B-L1-X | 1600 | 1600 | 2000 |
| B-L2 | B-L2-CU | B-L2-X | 2100 | 1600 | 2000 |
| B-L3 | B-L3-CU | B-L3-X | 2100 | 2100 | 2000 |
| B-L4 | B-L4-CU | B-L4-X | 3100 | 1600 | 2000 |
| B-L5 | B-L5-CU | B-L5-X | 3100 | 2100 | 2000 |
| B-L6 | B-L6-CU | B-L6-X | 4200 | 1600 | 2000 |
| B-L7 | B-L7-CU | B-L7-X | 4200 | 2100 | 2000 |
| B-L8 | B-L8-CU | B-L8-X | 5200 | 1600 | 2000 |
Price
| Model | Price* | Model | Price* |
|---|---|---|---|
| B-L1 / B-L1-X | 195,000 yen | B-L1-CU | 207,000 yen |
| B-L2 / B-L2-X | 233,000yen | B-L2-CU | 245,000 yen |
| B-L3 / B-L3-X | 257,000 yen | B-L3-CU | 269,000 yen |
| B-L4 / B-L4-X | 304,000 yen | B-L4-CU | 316,000 yen |
| B-L5 / B-L5-X | 330,000yen | B-L5-CU | 342,000 yen |
| B-L6 / B-L6-X | 397,000 yen | B-L6-CU | 409,000 yen |
| B-L7 / B-L7-X | 442,000 yen | B-L7-CU | 454,000 yen |
| B-L8 / B-L8-X | 475,000 yen | B-L8-CU | 487,000 yen |
*There will be a surcharge for deliveries.
Caution
*Laser safety standard of blackout curtain: Laser output within 20-30mW.
* Please assemble a darkroom by yourself.
*Please check bolts and screws regularly whether they don’t slack. If you find a slack, tighten it by hex wrench.
*The specification of our products may be changed without notice due to technical reasons.
